Convex transducer: a fundamental tool in the world of ultrasound

The convex transducer is a fundamental tool in the world of medical ultrasound. Its curved design and advanced technology allow for rapid, noninvasive, and highly accurate imaging of the internal parts of the human body, facilitating diagnostics in various medical specialties.

What is a convex transducer?

A convex transducer is a device used in ultrasound equipment. Its main characteristic is the curved shape of its emitting surface, which allows it to emit ultrasonic waves at a wide angle and penetrate deep into the body's tissues. This differentiates it from other types of transducers, such as linear transducers, which have a flat surface and are used for more superficial examinations.

What is it used for?

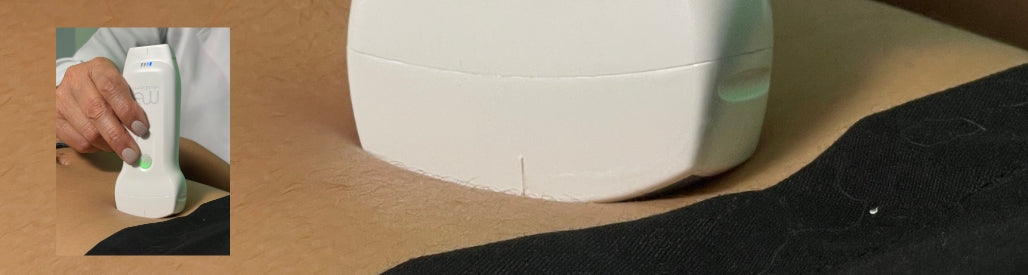

He convex transducer It is especially useful for examining deep abdominal organs and structures, such as the liver, kidneys, pancreas, gallbladder, and uterus. It is also widely used in gynecology and obstetrics to visualize fetal development during pregnancy, as well as in urology and internal medicine studies.

Main advantages

• It allows you to view deep areas of the body thanks to its greater penetration.

• Provides high quality and resolution images.

• It is versatile, as it can be used in different medical specialties.

• It facilitates rapid and safe diagnoses, without pain or radiation.

Frequently Asked Questions

Why is it called convex?

It is called convex because the surface of the transducer is curved outward, allowing a wider field of view and better penetration of ultrasonic waves.

What is the difference between a convex transducer and a linear transducer?

The linear transducer has a flat surface and is used to visualize superficial structures, such as blood vessels or muscles. The convex transducer, on the other hand, is ideal for deep organs and abdominal cavities.

Is it safe to use the convex transducer?

Yes, it is completely safe. It doesn't use radiation and the procedure is painless. Only a conductive gel is applied to the skin to improve the transmission of ultrasonic waves.

Which medical specialties can a convex transducer evaluate?

• Small parts

• Musculoskeletal system

• Nerve

• Vascular access

• Lung

• Cardiac

The convex transducer is a key component of diagnostic imaging, helping physicians obtain accurate and valuable information for healthcare.

Influence of convex transducer frequency on medical image quality

• Transducer frequency is a key factor determining both image quality and penetration depth in ultrasound studies.
• Relationship between frequency, penetration and resolution
• Convex transducers typically operate at low frequencies, typically between 2 and 6 MHz.

A low frequency allows ultrasound waves to penetrate deeper into the body, which is ideal for visualizing internal organs such as the liver, kidneys, and uterus. However, as the frequency decreases, the image resolution also decreases. This means that the images will be less detailed but will show deeper structures. In contrast, higher frequencies offer images with greater resolution and detail, but are only useful for superficial structures, as penetration is significantly reduced.

Practical application in convex transducers

In abdominal, obstetric and pelvic studies , where it is necessary to observe deep organs, the use of low frequencies is preferred to ensure adequate penetration, although some resolution is sacrificed.

Selecting the appropriate frequency depends on the balance between the need to see fine details (resolution) and the need to reach deeper organs (penetration).

Summary

• Low frequency (2-6 MHz): greater penetration, lower resolution; ideal for deep organs.

• High frequency (>7 MHz): lower penetration, higher resolution; ideal for surface structures.

In conclusion, the frequency of the convex transducer directly influences the quality of medical images, determining how deep organs can be visualized and how sharp the details observed in the ultrasound will be.
