$2,700.00

The most versatile microconvex, color doppler transducer suitable for animals and physicians. As a visualization tool, it improves the safety, efficiency and accuracy of clinical procedures. It works for human and veterinary doctors, making everything easier and at a lower cost, with less anxiety and pain.

Technical specifications

Weight and dimensions

Dimensions:
    125x60x20 mm
Weight:
    125 g

Battery and connectivity

Supported systems:
    iOS y Android
WiFi Type:
    802.11n/2.4G/5G
Energy:
    Built-in lithium battery, replaceable. 1.5 hours (working time), Charging with USB Type-C.
    Power on: Depends on the platform, usually <5 seconds.

Application

    • Pediatrics

Application instructions

    • Training of medical students at university: Visual understanding of the structure of the human body or study of ultrasound images.
    • Preliminary examination: Home care, family planning.
    • Visualization tools: Invasive intervention guidance, surgical and therapeutic guidance.
    • ODM/OEM: Integration into other multifunctional medical devices.
    • Baby scanning: Pregnant woman, baby scanning at home.

Main characteristics

    • Display: Phone or tablet screen
    • Type of probe: Micro convex array probe
    • Probe radius: 10mm
    • Scan angle / length: Linear 168mm
    • Frequency: 6.5/8.0MHz
    • Scanning mode: B, B/M, B+Color, B+PW
    • Display depth: 60~190mm
    • Adjustable software parameters: B:GN(BGanance), D(Depth), F(Frequency), ENH(Enhancement), TGC, DR(Dynamic Range)
    • Measurement: B:Length, Area, Circumference, GA (CRL,BPD,GS,FL,HC,AC); B+M: Heart Rate, Time, Distance; B+PW: Velocity, Heart Rate (2), S/D; Color/PW: GN,PRF,WF,Case
    • Playback frames: Auto and manual, 100/200/500/1000.
    • Image/video storage: Saves to phone, tablet or PC.
    • Puncture assist function: in-plane puncture guidance line, out-of-plane puncture guidance line

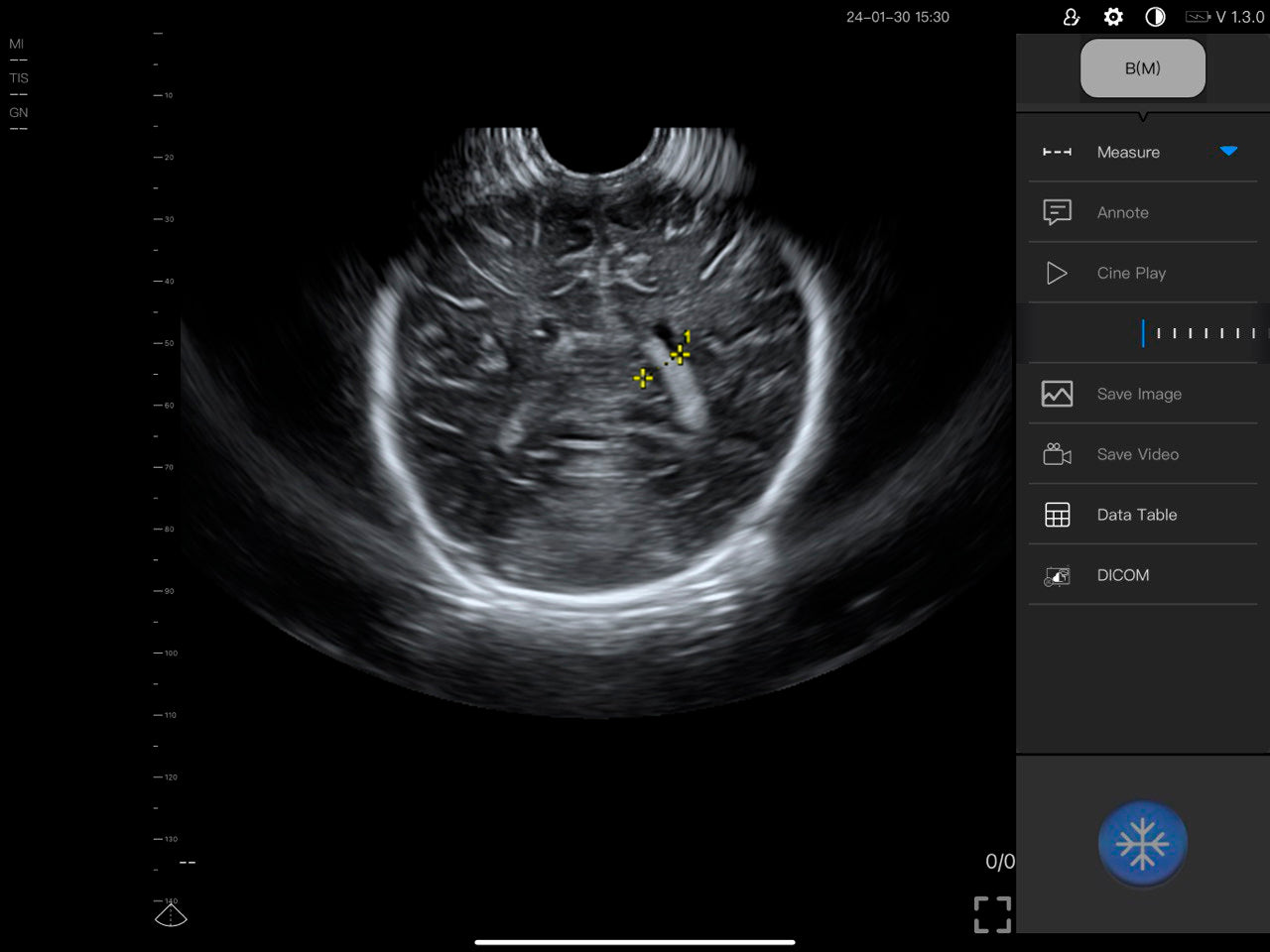

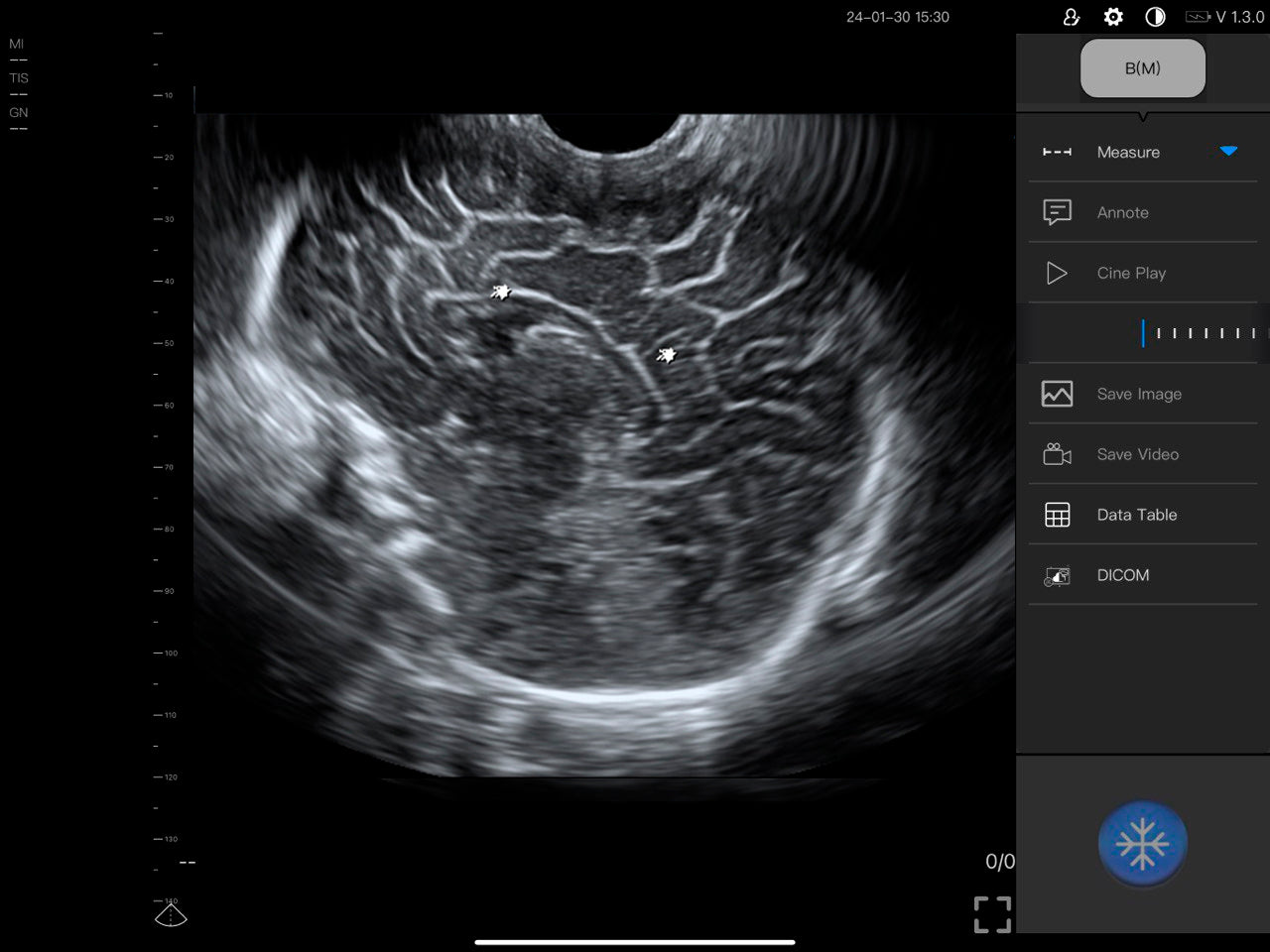

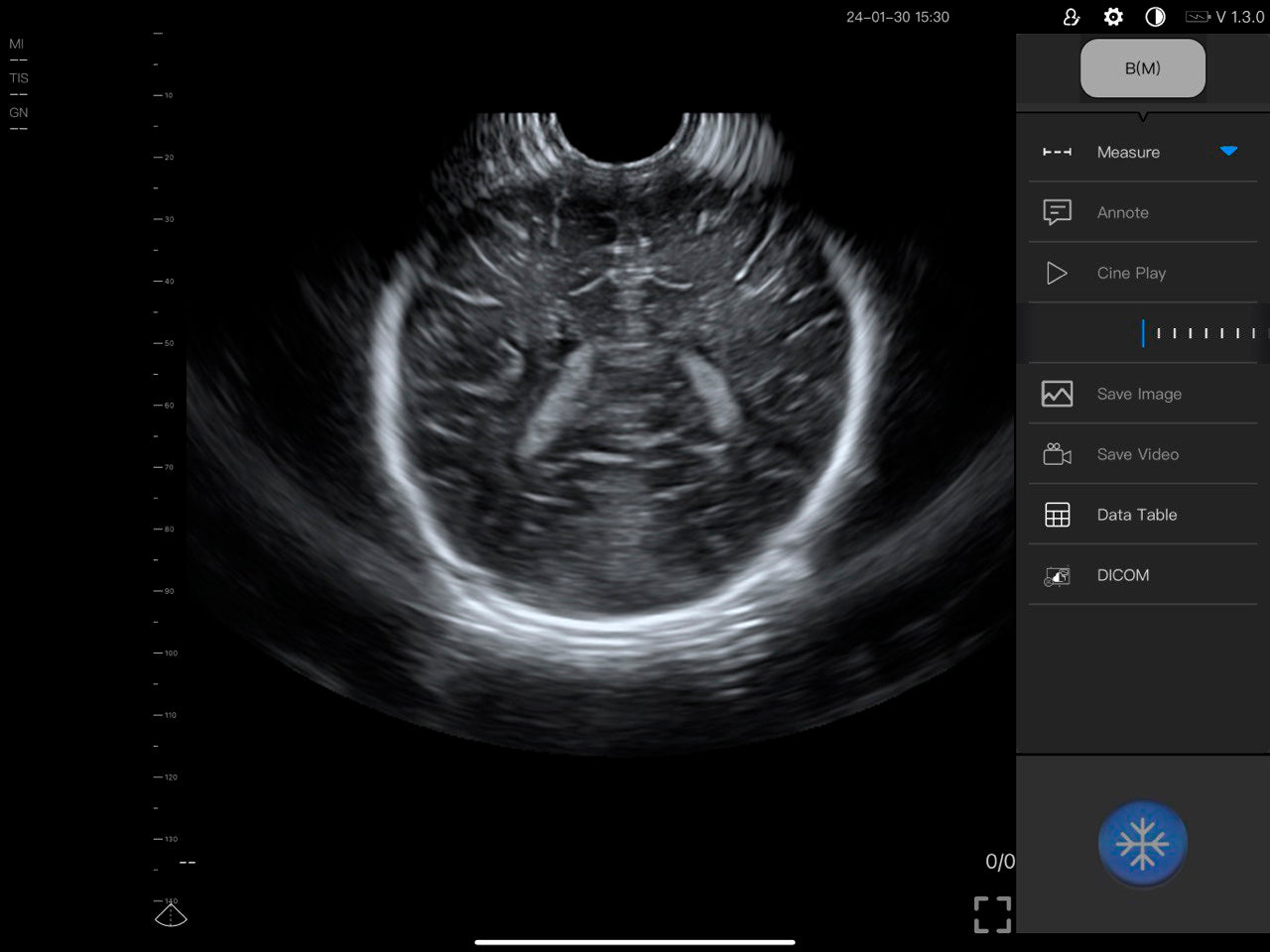

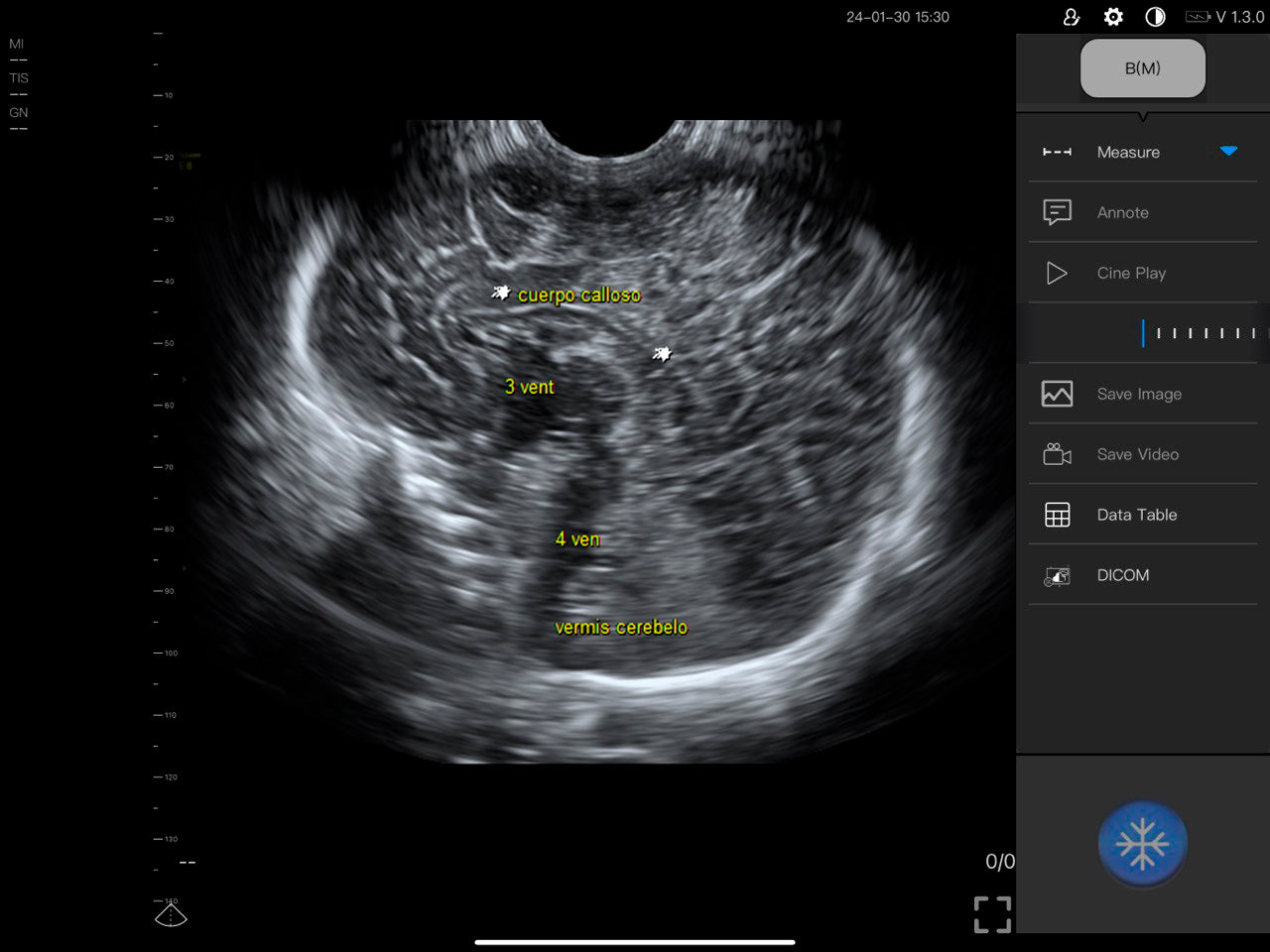

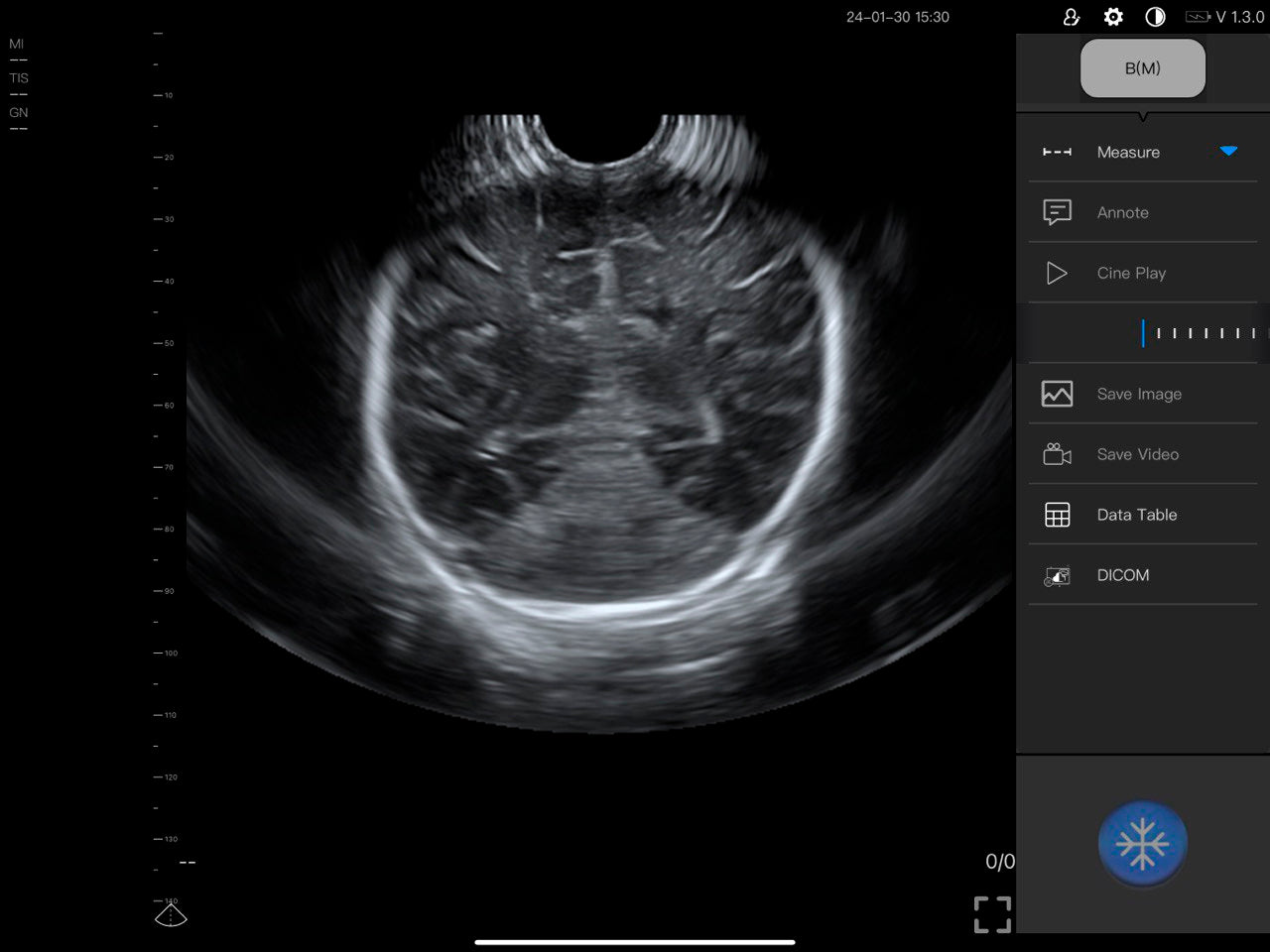

Real life images

Our devices reproduce excellent image quality.

Waterproof design

  • In order to avoid cross-infection, we have specially designed the entire sealing of the device, making it easy to clean and disinfect.
  • It can reduce medical accidents caused by cross-infection, protect you and your patients, and reduce clinical costs.

Intelligent Ultrasound

  • Mediexpert® devices use state-of-the-art software to improve the accuracy and efficiency of ultrasound examinations.
  • Intelligent software can help physicians diagnose diseases faster and more accurately.

IMPROVE YOUR WORKFLOW

With the perfect complements for your ultrasound

Trolley
Trolley
Trolley
Trolley
Trolley
Trolley
Trolley

Trolley

See more
software.png__PID:6f84ffe9-fee9-4f06-aeab-e5534c085a55

Easy-to-use software

  • You can install the application on any Android or iOS device.
  • It starts up in one second and goes into operation immediately.
  • Simple operation, short learning curve for people with no ultrasound experience.

Download the application for:
