$3,400.00

The PM4H is the first wireless Phased Array ultrasound transducer that allows the physician to perform Continuous Wave Doppler. It is a versatile tool that can be used for a wide range of applications, especially in Cardiology.

Technical specifications

Weight and dimensions

Size:
    114x53x30mm
Weight:
    165 g

Battery and connectivity

Supported systems:
    iOS, Android, Windows
Wifi type:
    802.11n/2,4G/5G
Energy:
    2 high capacity rechargeable lithium batteries 3.8 V, 2600 mAh with 3~4h charging time
    Charging time in operation: 4h of continuous use

Application

    • Cardiac
    • Abdomen

Application instructions

    • Emergency inspection: emergency room, ambulance, ICU, first aid, battlefield rescue.
    • Preliminary examination: ward inspection, primary clinical examination, medical examination, health examination, home care, family planning, etc.

Main characteristics

    • Display: Phone or tablet screen
    • Probe type: Phased Array Transducer + CWD
    • Scanning Angle: 80°.
    • Frequency: 2 - 3.5 MHz
    • Scanning mode: B, B+B, B+M ,Color, CWD, PW/CW, PDI, B+Color+PW/CW
    • Display Depth: 90~240mm
    • Length: 25mmx16mm
    • Image Adjustment: B GN(Gain), Color GN(Gain), D(Depth), ENH(Enhancement), DR(Dynamic Range), H(Harmonic), Focus.
    • Measurement: B: Length, Area/Circumference, Angle, Trace, Distance, B+M: Heart Rate, Time, Distance, LVID( LVIDd, LVIDs, EF, SV) B+PW/CW: Speed, Heart Rate(2), S/D
    • Puncture assist function: In-plane puncture guidance line, out-of-plane puncture guidance line, needle enhancement.
    • Image frame rate: 18~24 /second.
    • Cinplay: >50s

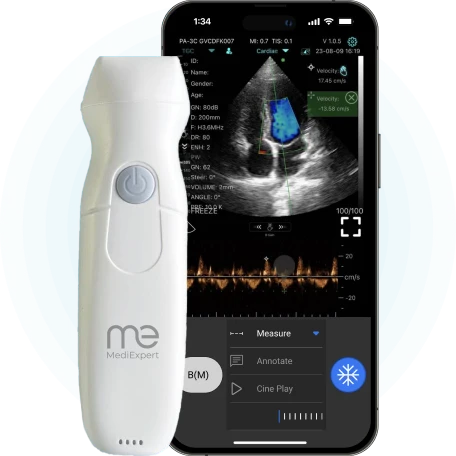

Exploring the power of the Continuous Wave Doppler

Continuous Wave Doppler is an innovative technology that enables accurate, real-time measurement of blood flow. Using ultrasonic waves, our POCUS transducer employs this advanced technique to provide detailed and reliable circulation data, improving measurement accuracy.

phone-transdcutor.png__PID:9e089a12-ed1a-43bc-bdee-d4a3e8c50a94

Real life images

Our devices reproduce excellent image quality.

Waterproof design

  • In order to avoid cross-infection, we have specially designed the entire sealing of the device, making it easy to clean and disinfect.
  • It can reduce medical accidents caused by cross-infection, protect you and your patients, and reduce clinical costs.

Ultrasonido Inteligente

  • Mediexpert® devices use state-of-the-art software to improve the accuracy and efficiency of ultrasound examinations.
  • Intelligent software can help physicians diagnose diseases faster and more accurately.

IMPROVE YOUR WORKFLOW

With the perfect complements for your ultrasound

Trolley
Trolley
Trolley
Trolley
Trolley
Trolley
Trolley

Trolley

See more
software.png__PID:6f84ffe9-fee9-4f06-aeab-e5534c085a55

Easy-to-use software

  • You can install the application on any Android or iOS device.
  • It starts up in one second and goes into operation immediately.
  • Simple operation, short learning curve for people with no ultrasound experience.

Download the application for:

iOSAndroidWindows
